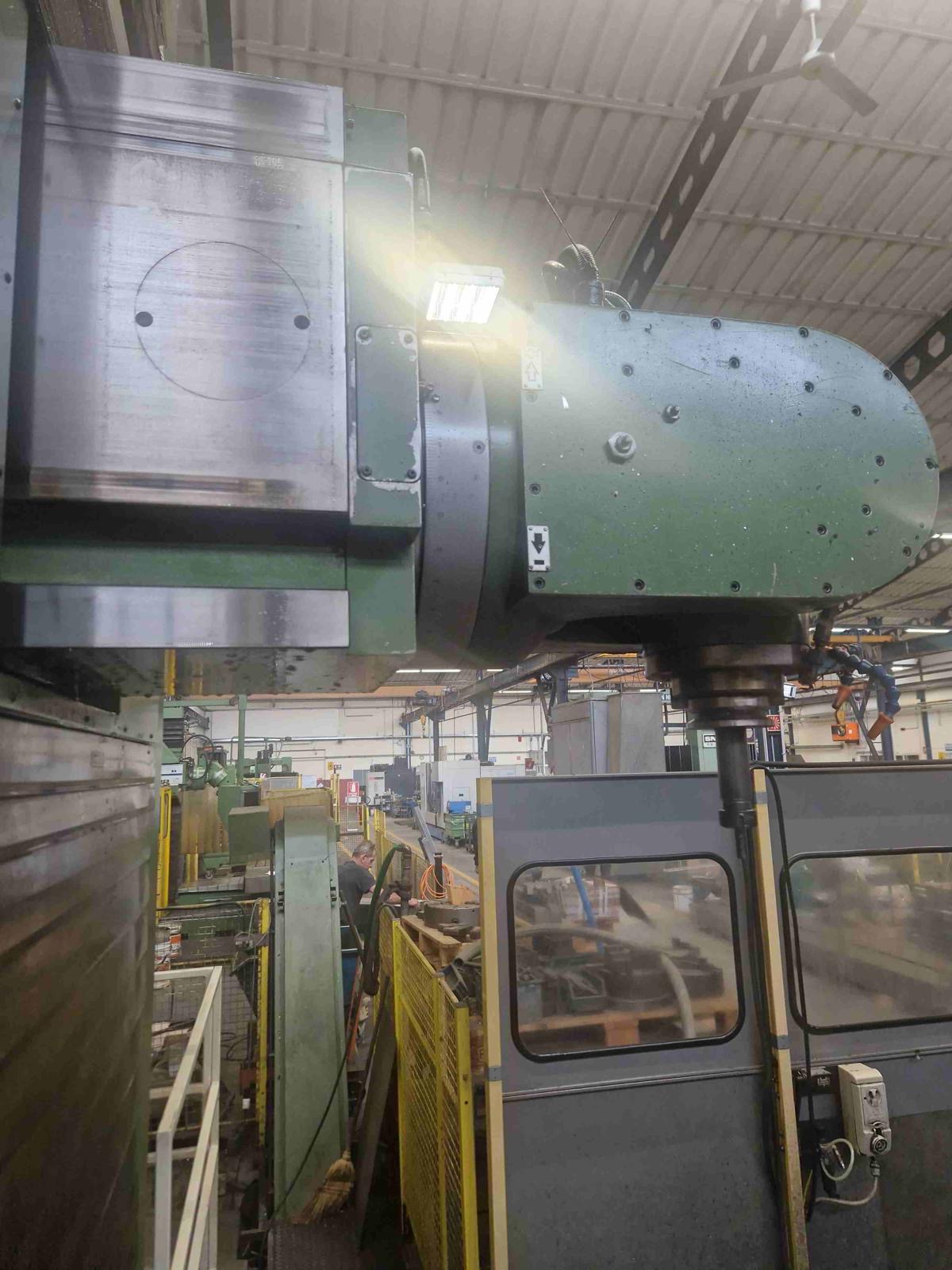

Portal-Milling machine SNK RB-3N CNC
Sold
Specifications
| Manufacturer | SNK |
| Model | RB-3N |
| Year | 1990 |
| Condition | Used |
| Stock Number | FR1641 |
| Table | 4000 x 2000 mm |
| Passage btw columns | 2400 mm |
| Max working height | 1500 mm |
| Table capacity | 10000 Kg |
| Table travel (X) | 4250 mm |
| Spindle vertical travel (Z) | 400 mm |
| Head trasversal travel (Y) | 2000 mm |
| Spindle motor power | 22 kW |
| Spindle speeds | 30 - 3500 rpm |
| Spindle diameter - ISO 50 | 220 mm |
| Crossrail travel | 1100 mm |
| Machine weight | 40 tons |
Description
Equipped with
- ATC 24 positions

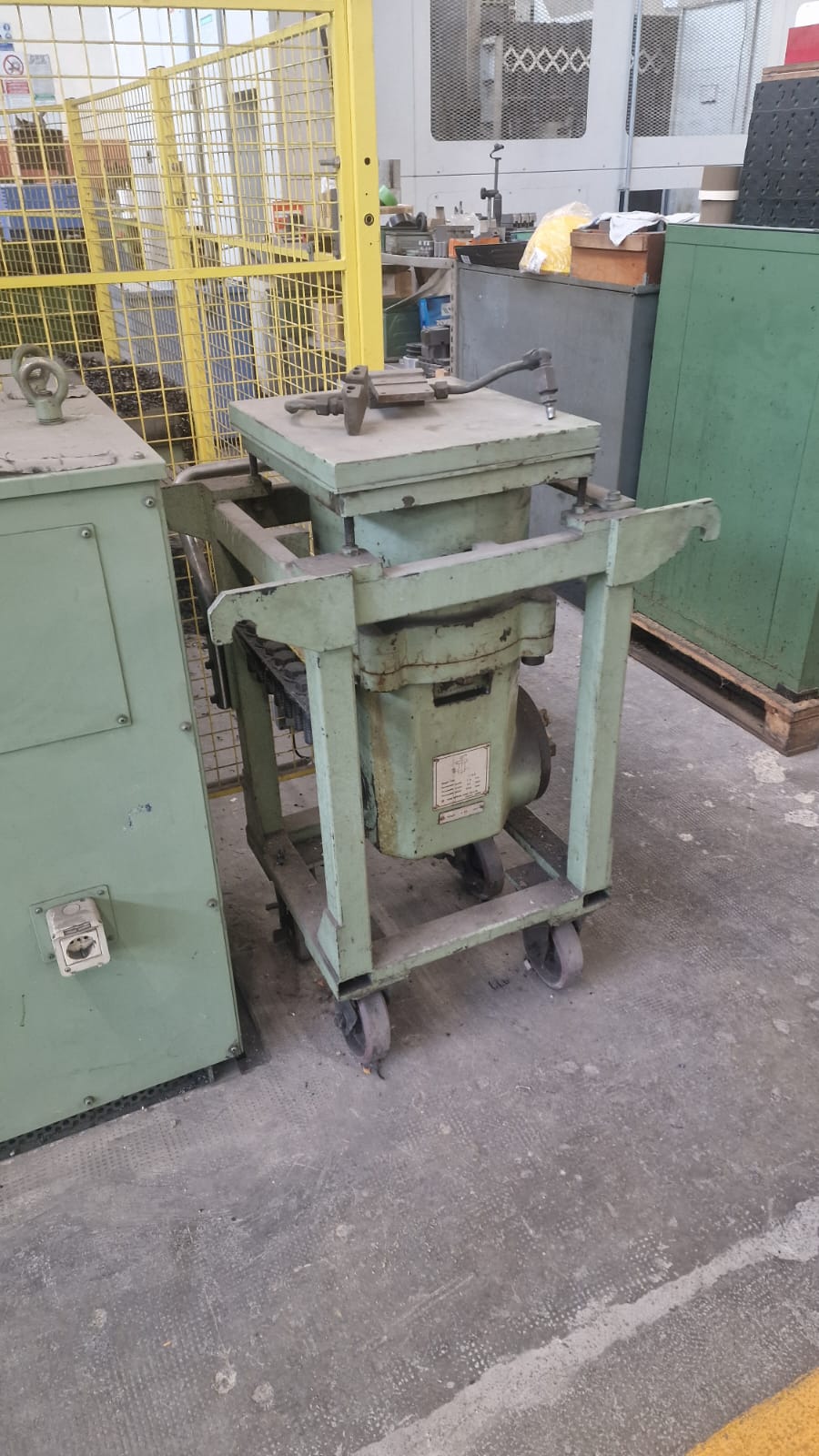

- 90° angle milling head
- Double chip conveyor

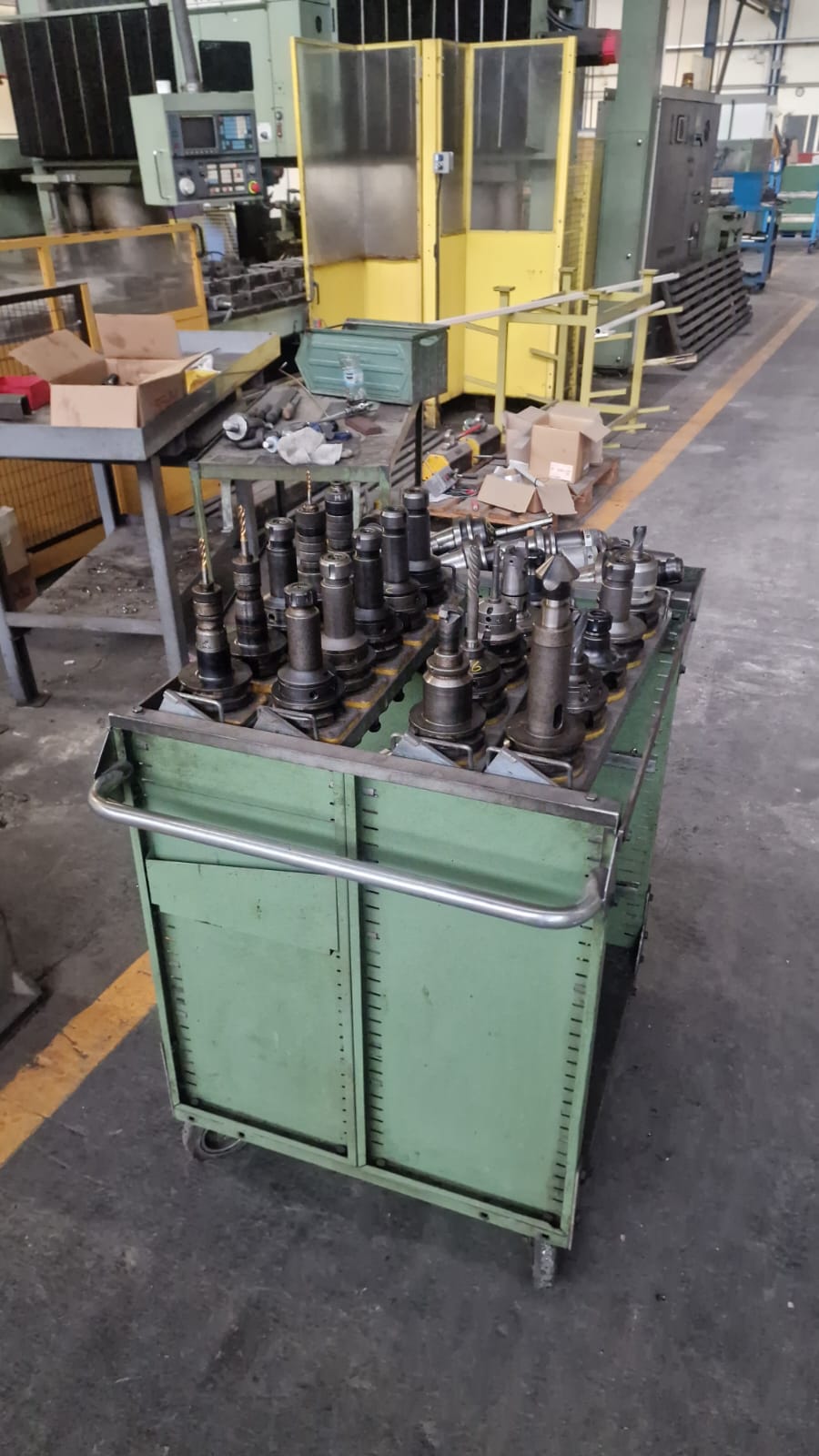

- tool-holders and tooling
