CNC Gear hobbing machine LIEBHERR LC 282
or
Call 0039 051 6720222
Specifications
| Manufacturer | LIEBHERR |
| Model | LC 282 CNC |
| Year | 1996 |
| Condition | Used |
| Stock Number | Factory |
| Max working diameter | 280 mm |
| Module | 7 |
| Worktable diameter | 250 mm |
| Worktable revolutions | 100/200 rpm |
| Min-max distance btw workpiece and hob | 30 - 300 mm |
| Hob head inclination angle | 45° |
| Max hob diameter | 160 mm |
| Machine weight | 12500 Kg |
Description

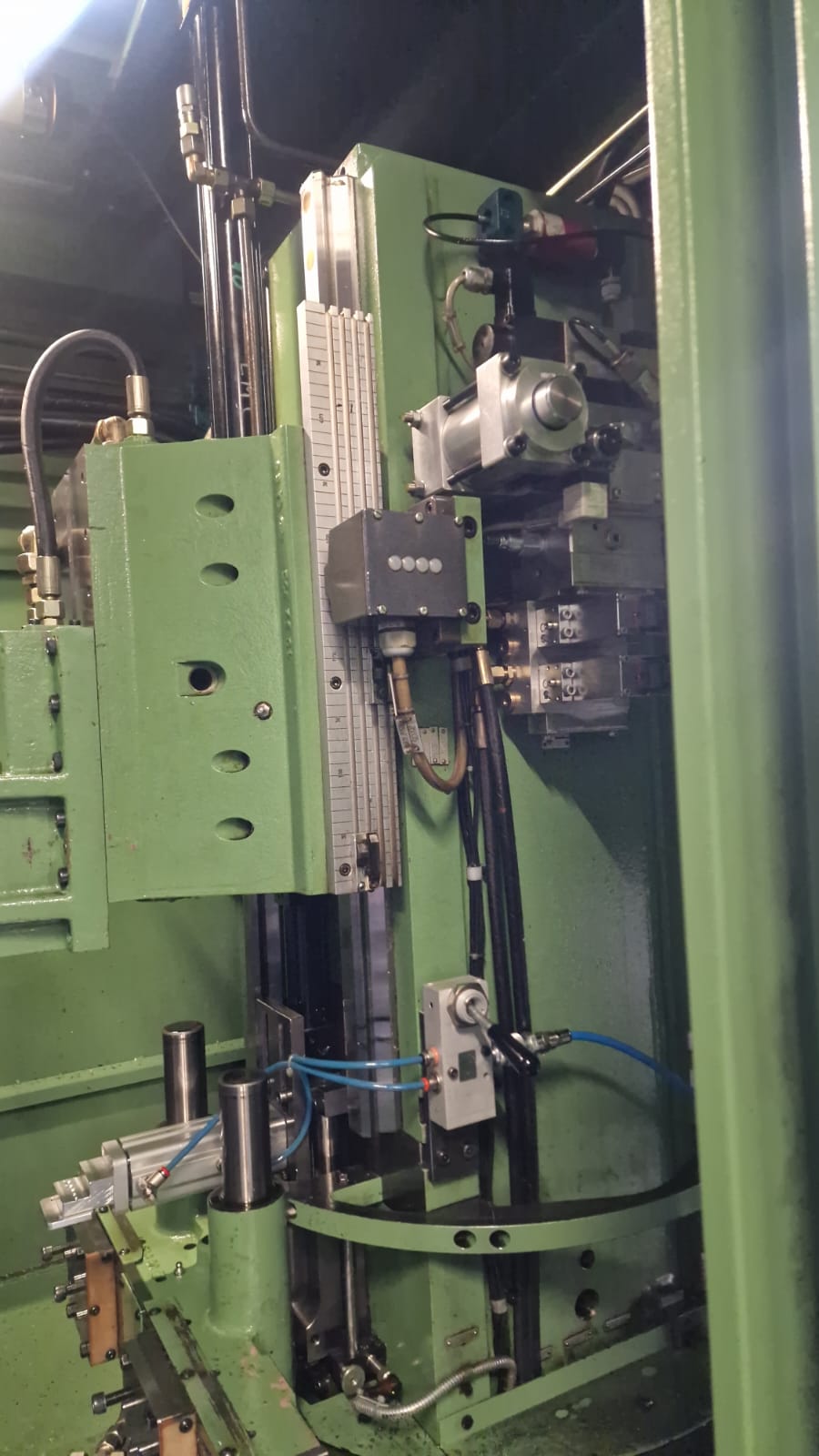

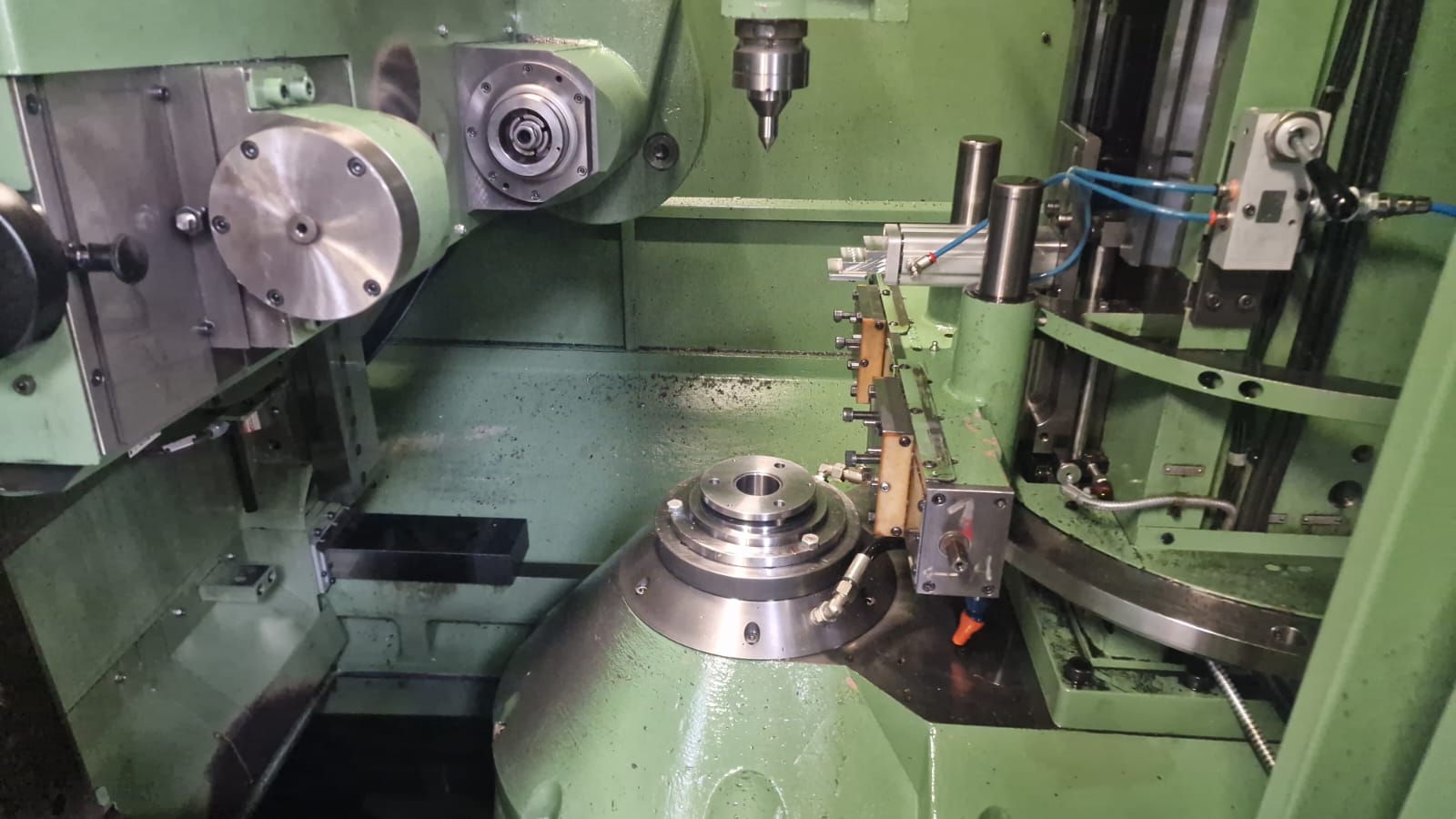

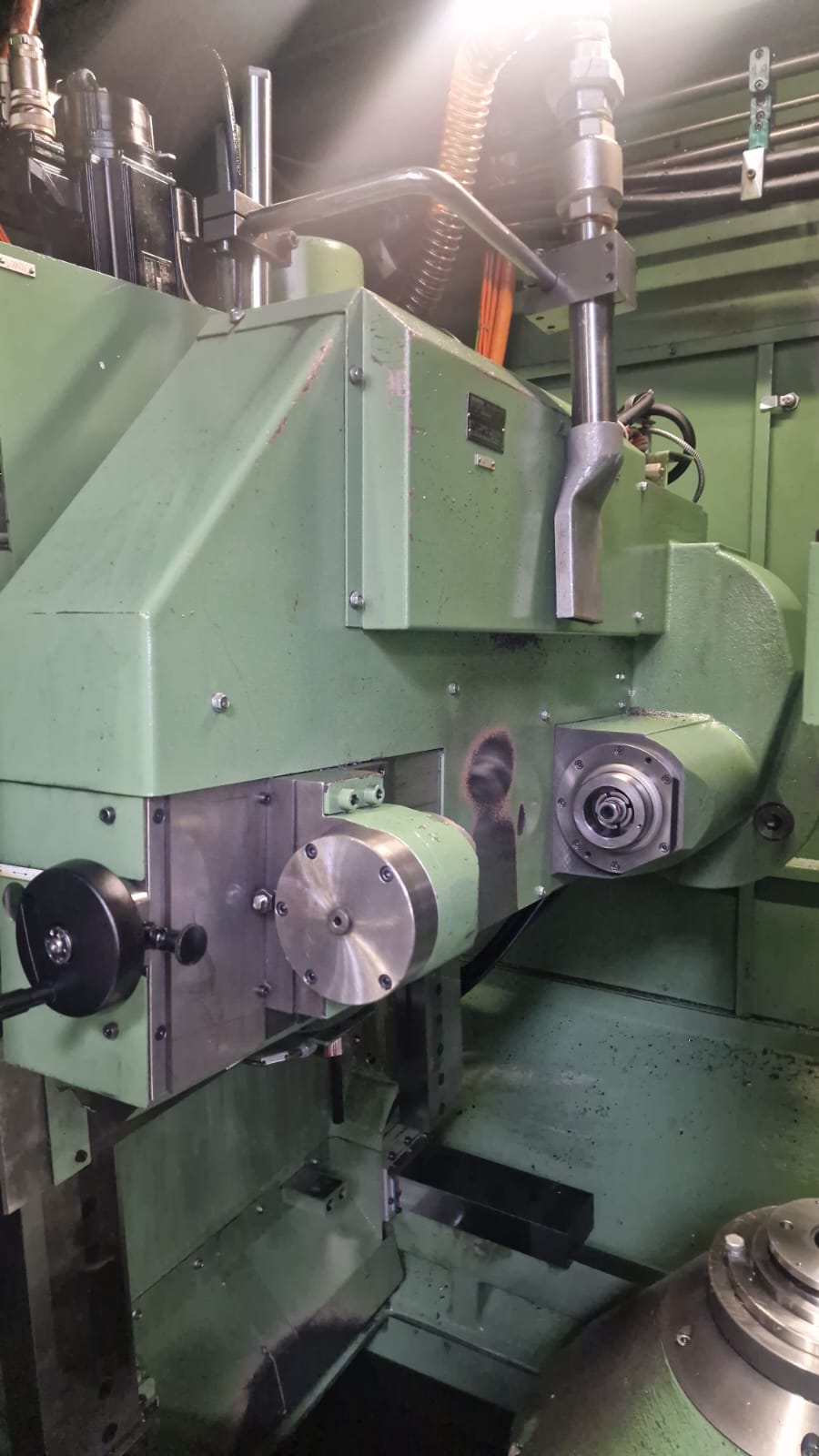

Used LIEBHERR LC 282 CNC gear hobbing machine, a high-precision machine tool designed for the production of cylindrical gears through the gear hobbing process.
The Liebherr LC 282 is a robust and reliable industrial machine used for machining medium-sized gears with high accuracy and repeatability. Thanks to its rigid structure and CNC control, it ensures stability even during heavy-duty machining and continuous production cycles.
It is an ideal solution for manufacturing gears for mechanical transmissions, automotive applications, and industrial systems requiring high-quality tooth profiles.
