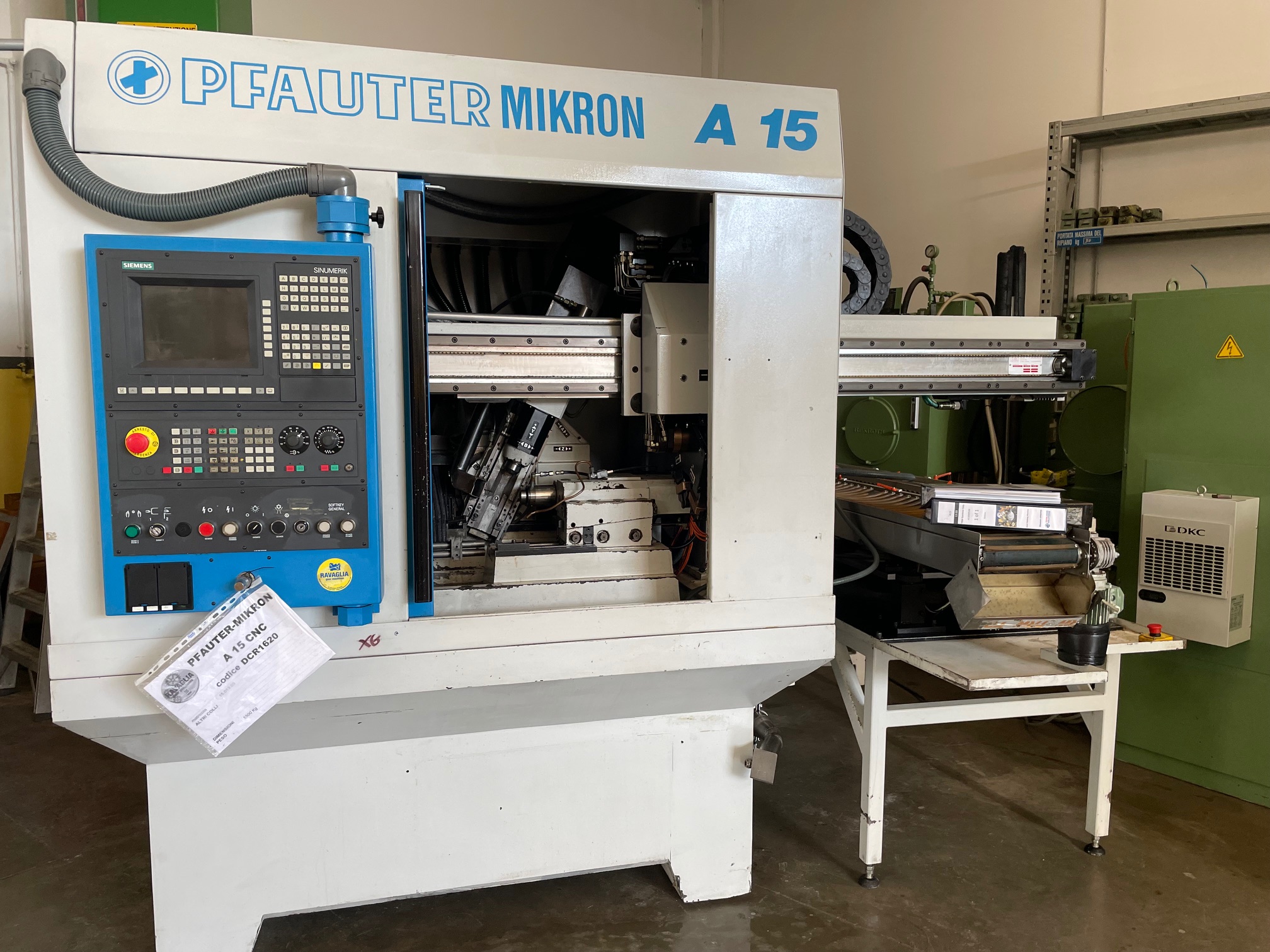

Gear hobbing machine PFAUTER MIKRON A 15 CNC
or
Call 0039 051 6720222
Specifications
| Manufacturer | PFAUTER MIKRON |
| Model | A 15 CNC |
| Condition | Used |
| Serial Number | 15.013.03 |
| Stock Number | DCR1620 |
| Max workpiece diameter | 100 mm |
| Max workpiece lenght (with loading system) | 200 mm |
| Max workpiece lenght (manually) | 300 mm |
| Max hob lenght | 100 mm |
| Max hob diameter | 5200 Kg |
| Max hob length | 65 mm |
| Hob shifting | 100 mm |
| Hob Revolutions | 200 ....4000 rpm |
| Min-max distance btw hob axis and workpiece axis | 10/76 mm |
| Machine weight | 5500 Kg |
Description
Equipment

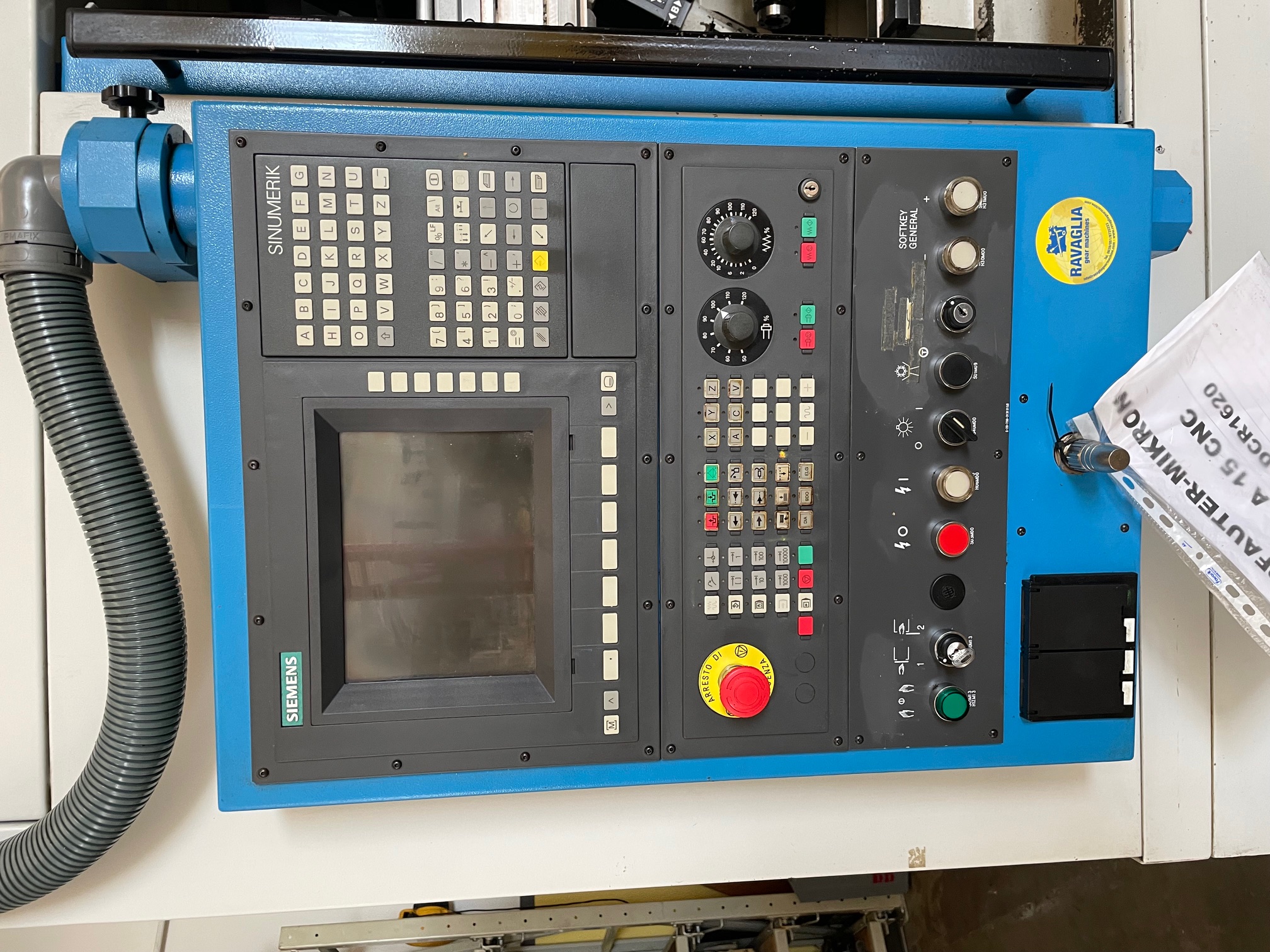

- CNC Siemens 840 C
- Wet and oil working possible
